Windows 10 22H2 Upgrade using SCCM Feature Update Option

In this article, I’ll show you how to use the SCCM feature update option to perform a Windows 10 22H2 upgrade. We will use Windows Servicing in SCCM to upgrade Windows 10 devices to version 22H2 via the enablement package.

Windows 10, version 22H2, also known as the Windows 10 2022 Update, is available for eligible devices running Windows 10, versions 20H2 and newer. Microsoft released Windows 10, version 22H2 (KB5015684) on 18th October 2022, and it is an enablement package.

For home users running Windows 10 version 20H2 and later, the recommended way to get the Windows 10 22H2 is via Windows Update. Go to Start > Settings > Windows Update and run Check for Updates. Select the Feature update to Windows 10, version 22H2 and install it.

When you want to upgrade multiple Windows 10 devices to version 22H2, Configuration Manager is the best tool. It simplifies the way you deploy and manage updates and saves a lot of time. With Configuration Manager, you can select the “Feature Update to Windows 10 Version 22H2 via Enablement Package” and deploy it to a set of devices.

Ways to upgrade to Windows 10 22H2

There are multiple ways that you can use to upgrade to Windows 10 version 22H2.

• Get the Windows 10 22H2 update via Windows Update.
• Use Servicing Plans to upgrade eligible Windows 10 devices to version 22H2.
• Upgrade Windows 10 21H2 to Windows 10 22H2 using ConfigMgr Windows Servicing feature.
• Deploy the Windows 10 22H2 update using the SCCM task sequence.
• Using the Intune to upgrade to Windows 10 22H2 upgrade for WUfB managed devices.

We will use the Configuration Manager feature update option to deploy the Windows 10 22H2 enablement package out of all the above methods. This is the easiest and quickest way I can think of to update Windows 10 to version 22H2.

Recommended: Upgrade to Windows 10 21H2 using SCCM | ConfigMgr

Can I use SCCM Servicing Plans to Upgrade to Windows 10 version 22H2?

Yes, you can use the Servicing Plans in SCCM to upgrade the computers running Windows 10 to version 22H2. With Configuration manager servicing plans you can ensure that all the Windows 10 systems are kept up-to-date when new builds are released. Servicing plans are ADR that can help you to upgrade Windows 10 to version 22H2. Take a look at detailed guide on Windows 10 Servicing Plans in SCCM.

If you are unsure whether to upgrade to Windows 10 22H2 using a Servicing Plan or a feature update deployment, I would advise choosing the latter. There are only a few steps involved in deploying a Windows 10 22H2 feature update, making it much simpler than a servicing plan. You get to make the final decision.

Related Article: Windows 11 22H2 upgrade using SCCM | ConfigMgr

About Windows 10 version 22H2

Windows 10 22H2 is an enablement package and this is good news for admins. The enablement package is a great option for installing a scoped feature update like Windows 10, version 22H2. You can upgrade from version 2004, 20H2, 21H1, or 21H2 to version 22H2 with a single restart, reducing update downtime. Since Windows 10 22H2 is an enablement package, the devices currently on Windows 10, version 20H2 or newer will have a fast installation experience because the update will install like a monthly update.

Prerequisites

With Configuration Manager, you need few things to be configured before you deploy the feature updates to computers. If you have deployed the feature updates before, it means most of the prerequisites are already taken care of. If your SCCM setup is new, you may have to configure them once before deploying the upgrades.

Listed below are all the prerequisites required for Windows 10 22H2 upgrade using SCCM.

• Configure Software Update Point by enabling the upgrades for Windows 10 and Windows 11.
• Ensure the service connection point is online.
• Enable dynamic update for feature updates in Configuration Manager Client Settings.
• Windows 10 1903, and later product must be enabled under Software Update Point > Products.

Download Windows 10 22H2 Enablement Package

Let’s look at steps for downloading Windows 10 22H2 enablement package using SCCM. First of all ensure you have synchronized the updates in Configuration Manager. You can either download the feature first and deploy or directly deploy the feature update. I prefer to download it first, let the content get distributed to distribution points and then deploy it.

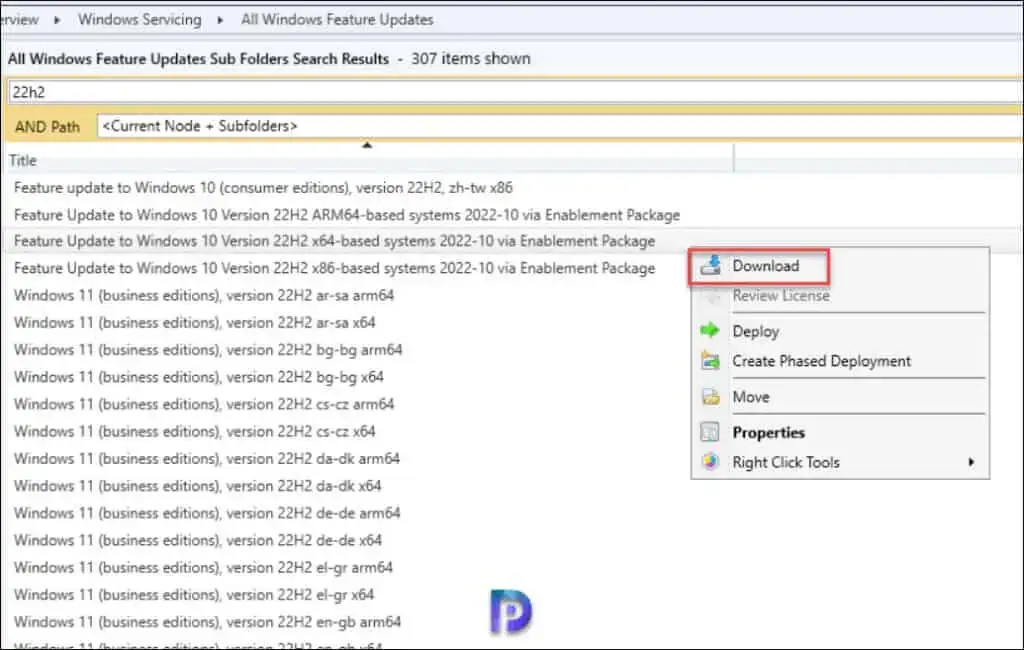

Go to Software Library > Overview > Windows 10 Servicing > All Windows 10 Updates. Look for the update “Feature Update to Windows 10 Version 22H2 x64-based systems 2022-10 via Enablement Package“. You can also search the updates with article ID 5015684.

Download Windows 10 22H2 Enablement Package

If you have got both x64-based systems and x86-based systems, you must download Feature Update to Windows 10 Version 22H2 x64-based and x86-based. In my lab, all my Windows 10 VMs are running Windows 10 64-bit OS, and therefore I am going to download only Feature Update to Windows 10 Version 22H2 x64-based systems 2022-10 via Enablement Package.

Create Deployment Package

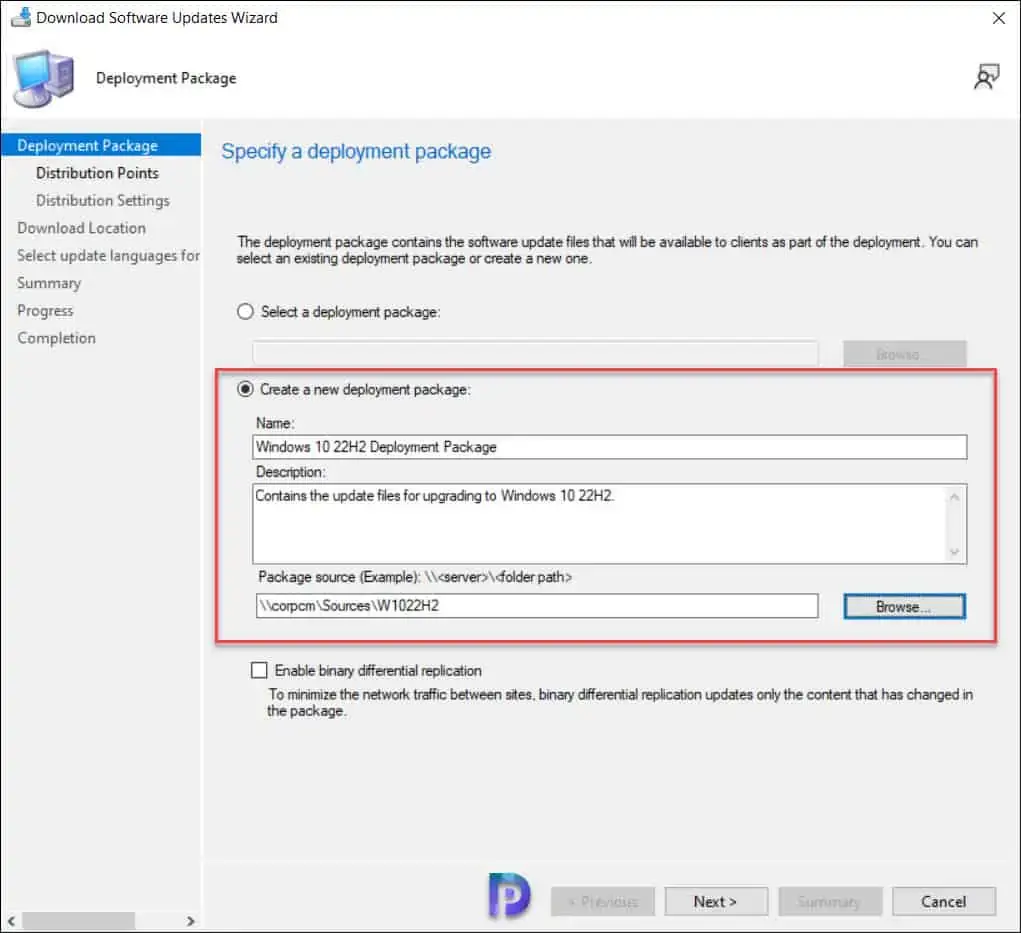

On the Deployment package window, specify the deployment package for Windows 10 22H2 upgrade files. This deployment package that you create will contain the software update files that will be deployed to the clients.

Select Create a new deployment package and specify the package name as “Windows 10 22H2 Deployment Package.” Add a brief description and specify the package source – a shared folder where you want to download the updates. Enabling the binary differential replication is optional. Click Next.

Download Windows 10 22H2 Enablement Package

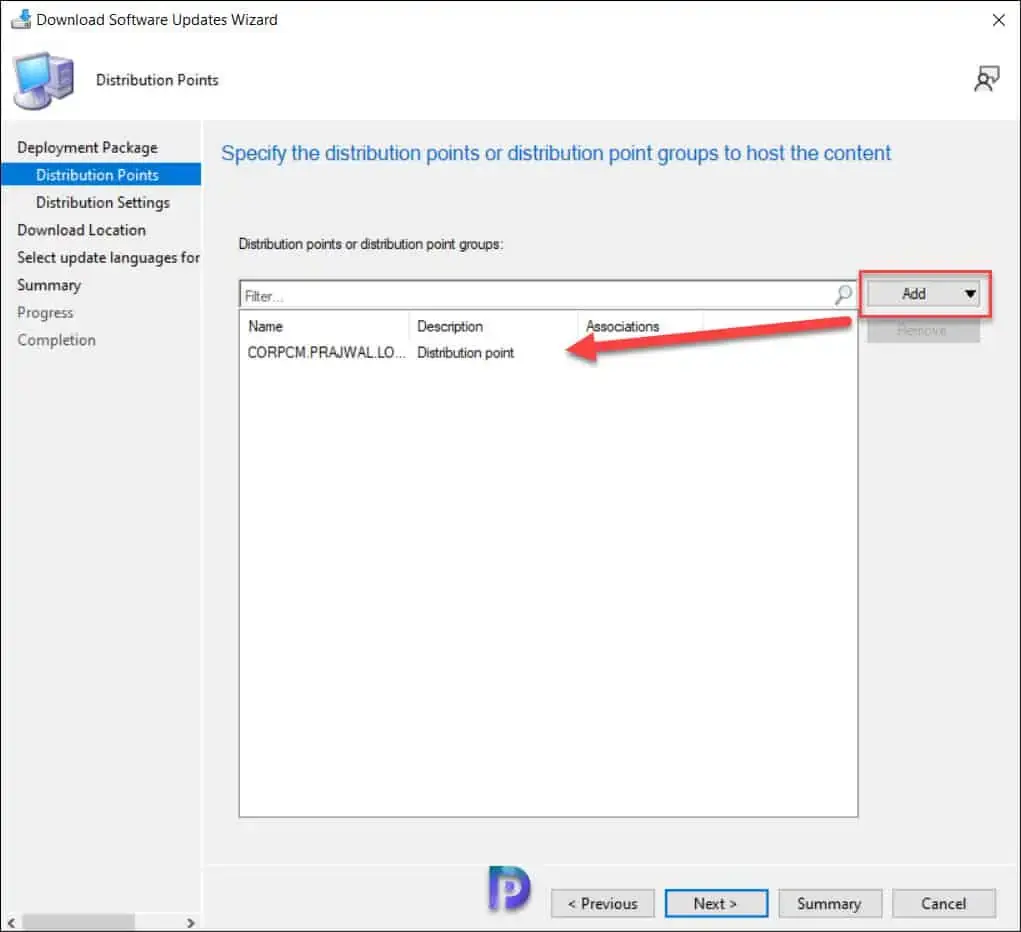

Click on Add button and select the distribution point servers to which you would like to distribute the Windows 10 22H2 upgrade files. Click Next.

Download Windows 10 22H2 Enablement Package

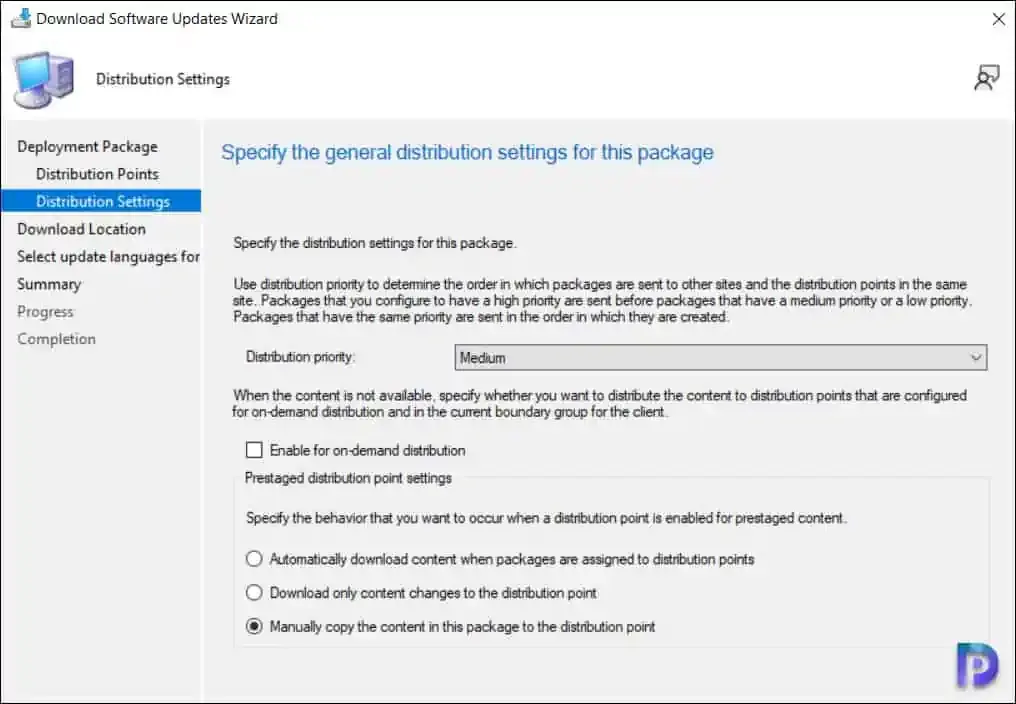

On the Distribution Settings page, you can specify the general distribution settings for the deployment package. Click Next.

Specify the Deployment Package Distribution Settings

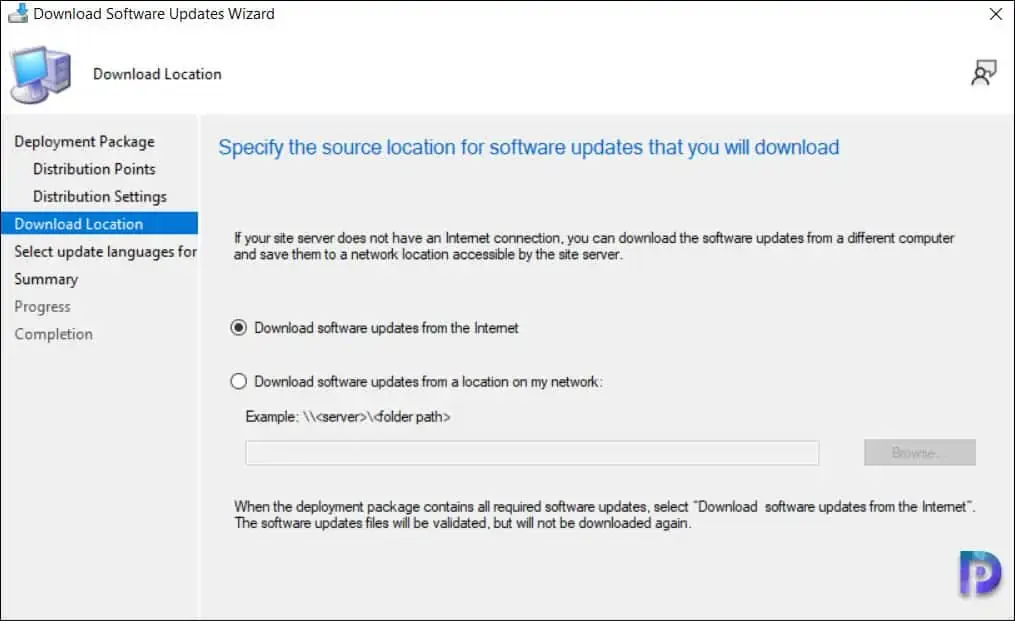

The download location lets you select an option to download the updates from. For example, you can download the software updates directly from internet or choose to download the software updates from the location on network. Select the option “Download software updates from the internet“. Click Next.

Choose the Download Location for Updates

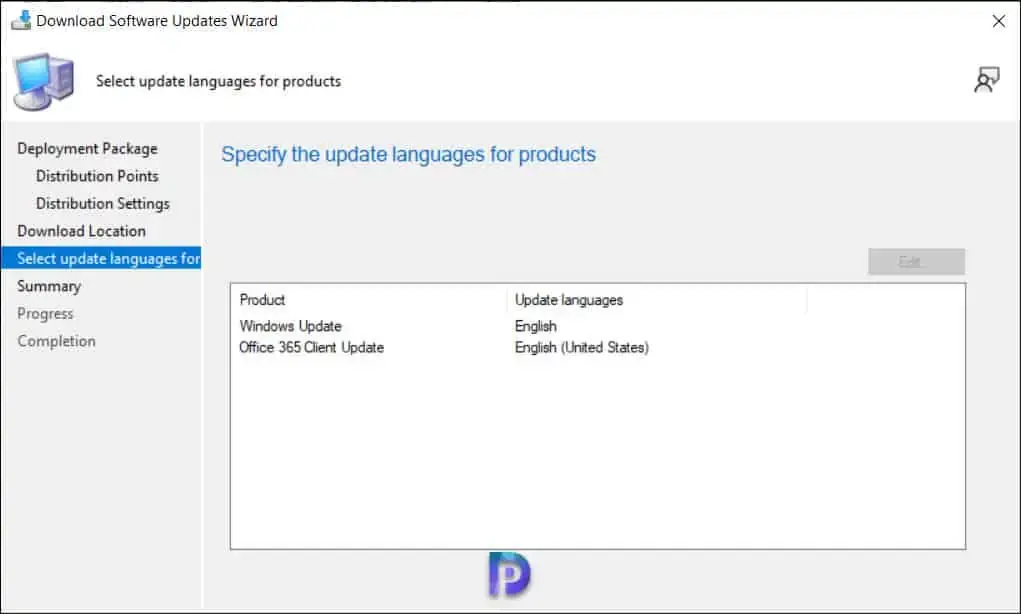

Specify the update language for the products. The default language is English US. Click Next.

Select Update Languages for Products

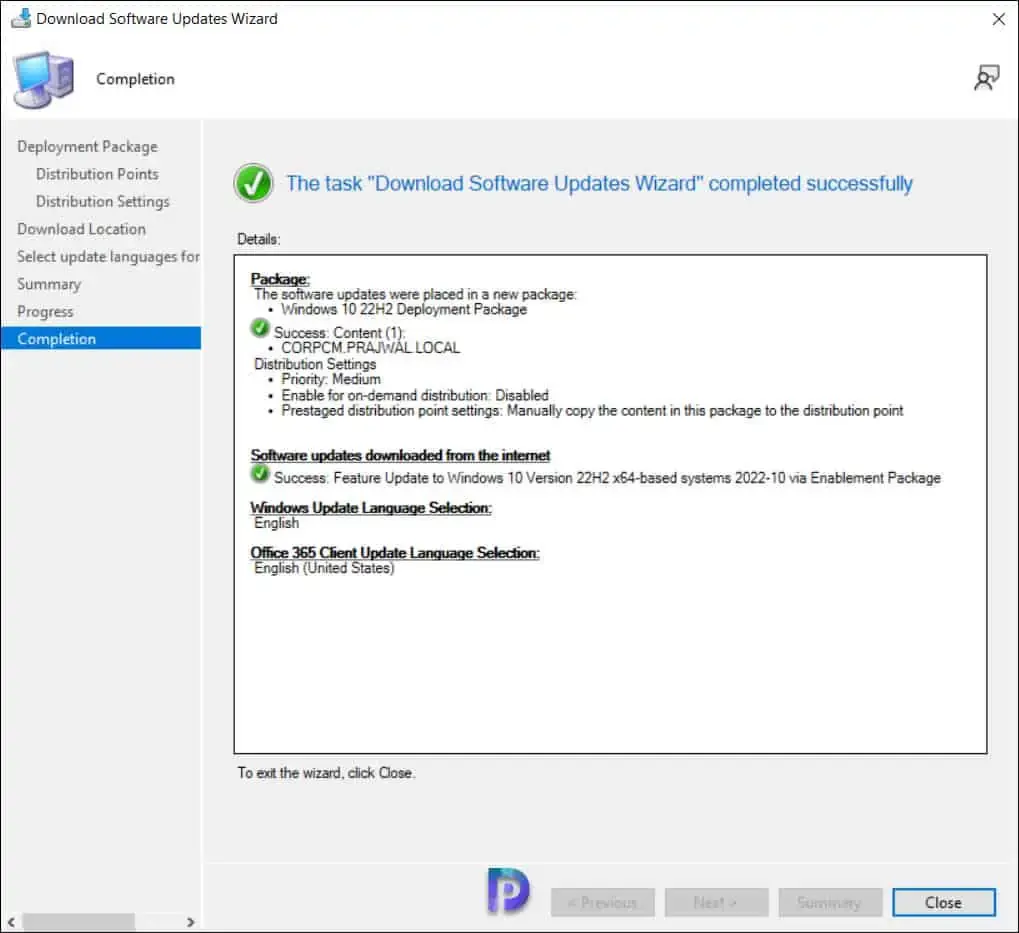

Review the Windows 10 22H2 deployment package settings and close the Download software updates wizard.

Close Download Software Updates Wizard

Note: In case you encounter issues while downloading the Windows 10 22H2 enablement package update, review the PatchDownloader.log located in the %temp% folder. This log file will log all the errors that occur during the download of Windows 10 feature updates.

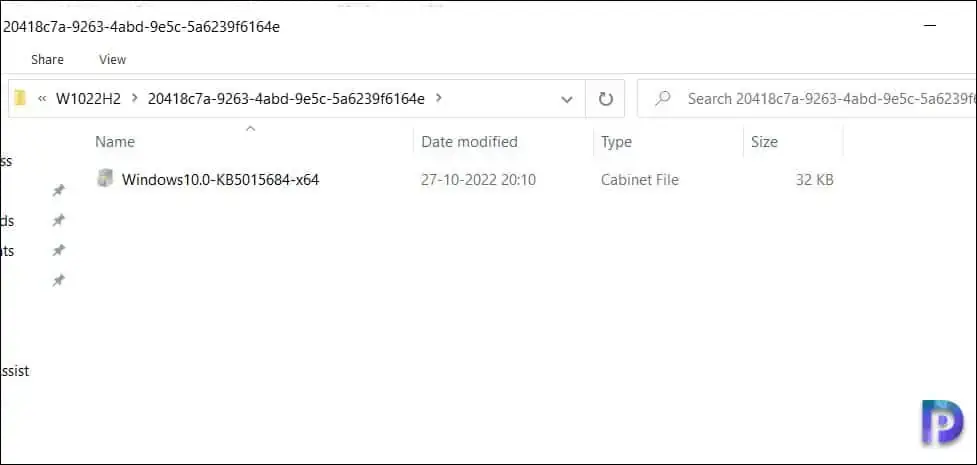

In the above step, the files required to upgrade Windows 10 to version 22H2 are downloaded to the specified location. If you browse to the downloaded location, you will notice that Windows 10 22H2 enablement package contains only one update which is Windows10.0-KB5015684-x64. The size of the Windows 10 22H2 enablement package is 32 KB. This one file is sufficient to upgrade Windows 10 computers to version 22H2.

Windows 10 22H2 Enablement Package

Deploy Windows 10 22H2 Feature Update using SCCM

In this step, using the Windows Servicing, we will perform the Windows 10 22H2 feature update deployment using Configuration Manager. You can deploy the feature update to a single client or to multiple devices using device collection.

If you are deploying the Windows 10 22H2 update for the first time, I suggest testing the upgrade on a Pilot device collection. A few devices that are intended to test the upgrade to 22H2 should be included in this device collection. Use the following guide to create a device collection for Windows 10 computers in SCCM.

Recommended Article: Upgrade Windows 10 21H1 using SCCM | ConfigMgr

Use the following steps to deploy the Windows 10 22H2 feature update using SCCM:

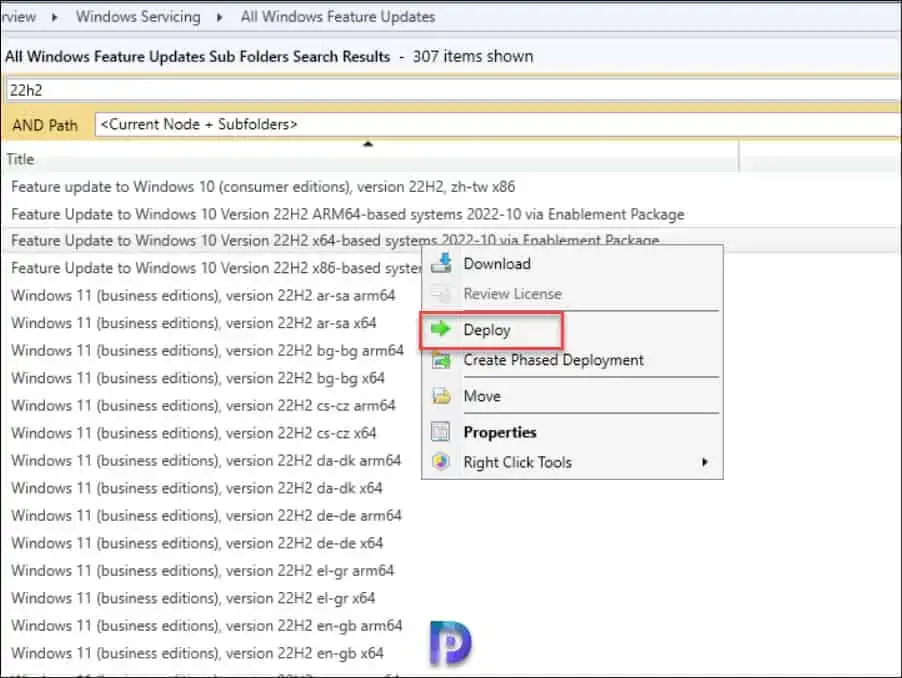

• In the ConfigMgr console, navigate to Software Library\Overview\Windows Servicing\All Windows Feature Updates.
• Right-click Feature Update to Windows 10 Version 22H2 x64-based systems 2022-10 via Enablement Package update, and select Deploy.

Deploy Windows 10 22H2 Feature Update using SCCM

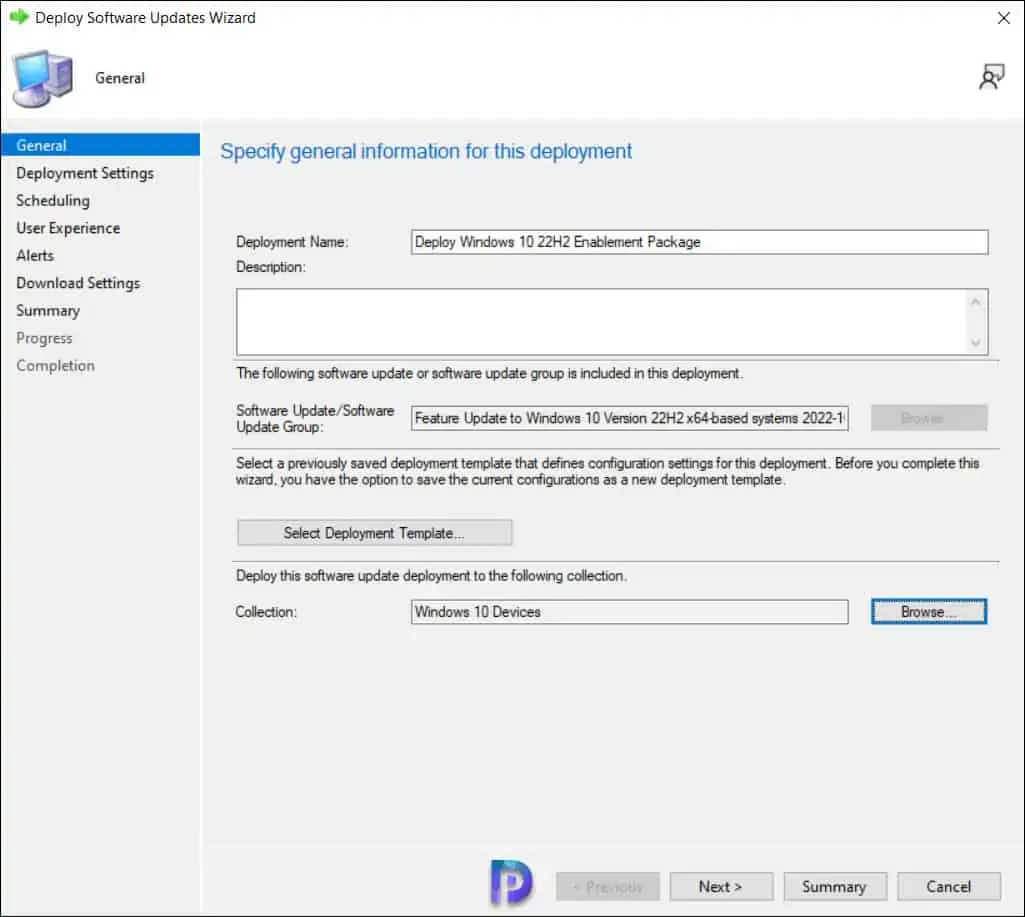

On the General page, enter the details for Windows 10 22H2 feature update deployment.

• Deployment Name: Enter a suitable name such as Deploy Windows 10 22H2 Enablement Package.
• Description: Although it’s optional, you may add a brief description.
• Software Update Group: This is created automatically and is visible under Software Update Groups in Configuration Manager console.
• Collection: Click Browse and select a device collection consisting of few pilot devices selected for testing Windows 10 2022 upgrade.

Click the Next button to continue.

Deploy Windows 10 22H2 Feature Update using SCCM

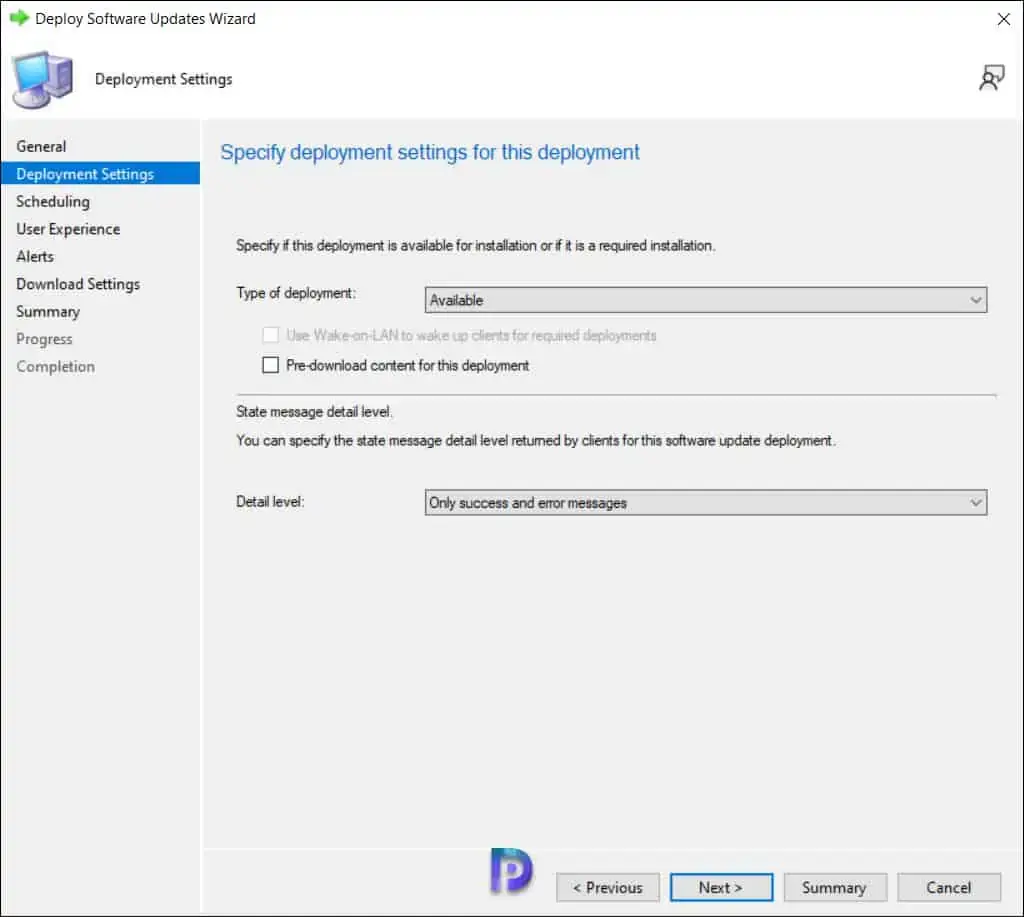

On the Deployment Settings page, specify the type of deployment. Choose whether you want to make the Windows 10 22H2 upgrade available for users in the Software Center or deploy it as required. Read more about SCCM Available vs. Required to know the differences. Click Next.

Deploy Windows 10 22H2 Feature Update using SCCM

The Scheduling page lets you configure schedule details for the deployment. Configure the following settings:

• Schedule Evaluation | Time Based on: Select Client Local Time.
• Software Available Time: As soon as possible.

If you want to make the Windows 10 22H2 upgrade available at a specific date and time, select Specific time and define them. Define the deadline installation to ensure the upgrade happens in the defined period.

Click Next to continue.

Deploy Windows 10 22H2 Feature Update using SCCM

Specify the following user experience settings for the deployment.

• User Notifications: Display in Software Center and show all notifications
• Commit changes at the deadline or during a maintenance window (requires restarts): Yes
• If any update in this deployment requires a system restart, run updates deployment evaluation cycle after restart: No.

Click Next.

Deploy Windows 10 22H2 Feature Update using SCCM

On the Download settings page, specify the download settings for the current deployment:

• Client Computers can use distribution points from neighbor boundary: No
• Download and install software updates from the fallback content source location: Yes

Click Next to continue.

Deploy Windows 10 22H2 Feature Update using SCCM

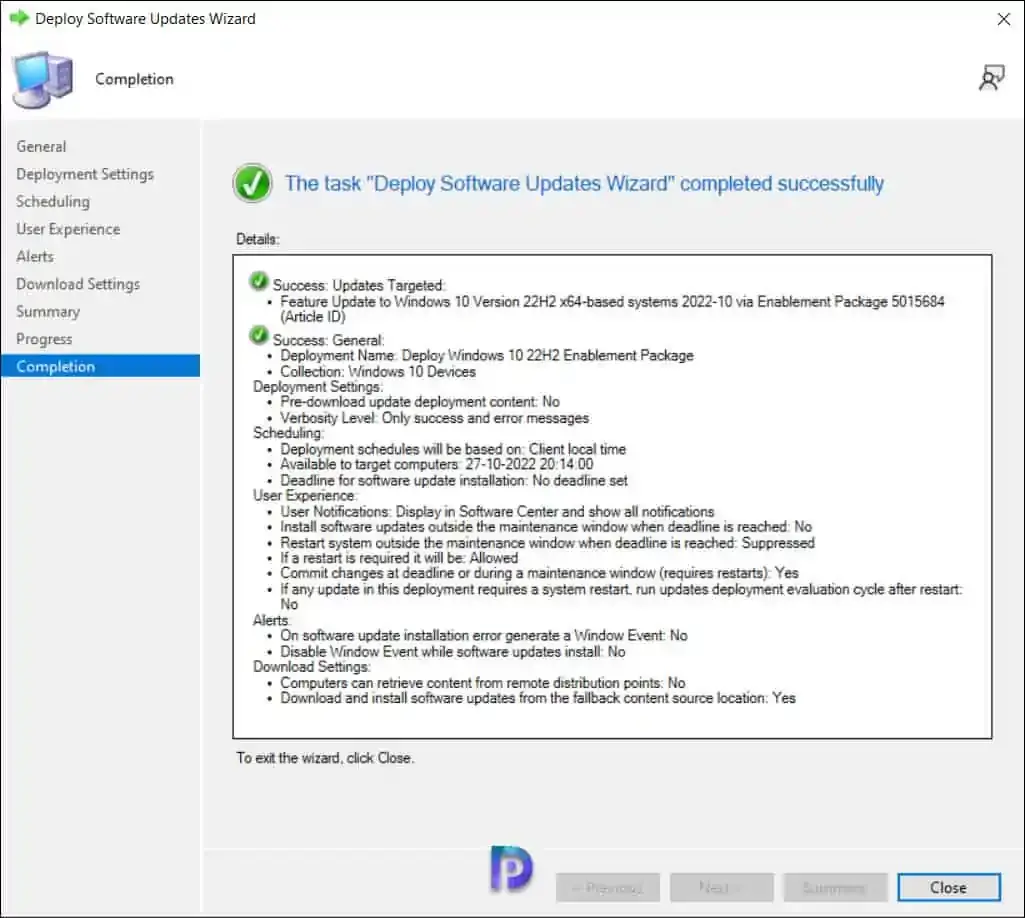

Review the deployment settings of Windows 10 22H2 on Summary page and click Next. On the Completion window, click Close.

Deploy Windows 10 22H2 Feature Update using SCCM

Windows 10 22H2 Servicing: End-User Experience for Upgrade

After you have deployed Windows 10 22H2 enablement package update using Windows Servicing, it’s time to test the upgrade installation on end computers. The end-user experience is similar to other feature upgrades.

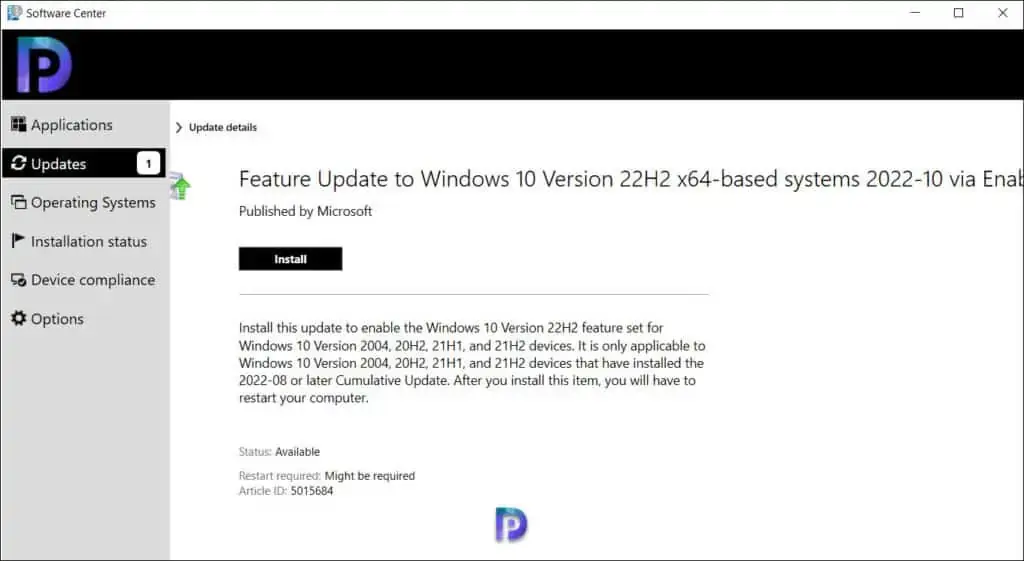

On the client computer, first launch the Software Center. Once the Software Center has been opened, select Feature Update to Windows 10 Version 22H2 x64-based systems 2022-10 via Enablement Package update by clicking the Updates tab. Click on the Install button.

Windows 10 22H2 Upgrade Servicing: End-User Experience

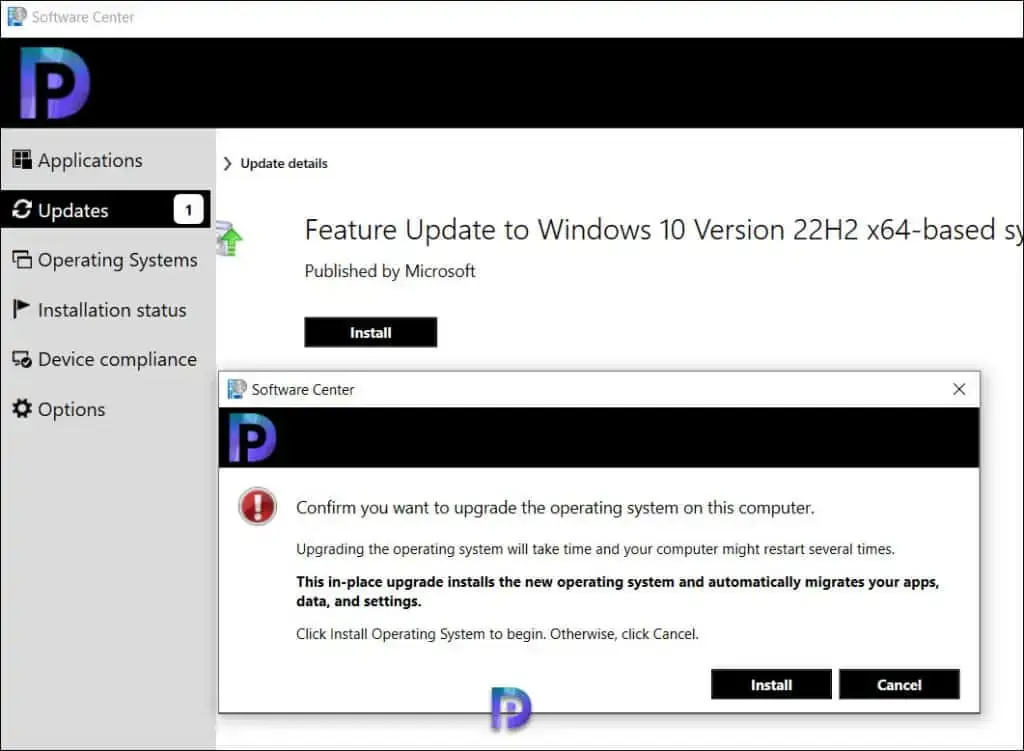

Confirm you want to upgrade the operating system on this computer. It will take only few minutes to upgrade the operating system as this is an enablement package. Note that this is an in-place upgrade to version 22H2, and the setup automatically migrates your apps, data, and settings. Click on the Install button to begin the Windows 10 22H2 upgrade.

Windows 10 22H2 Upgrade Servicing: End-User Experience

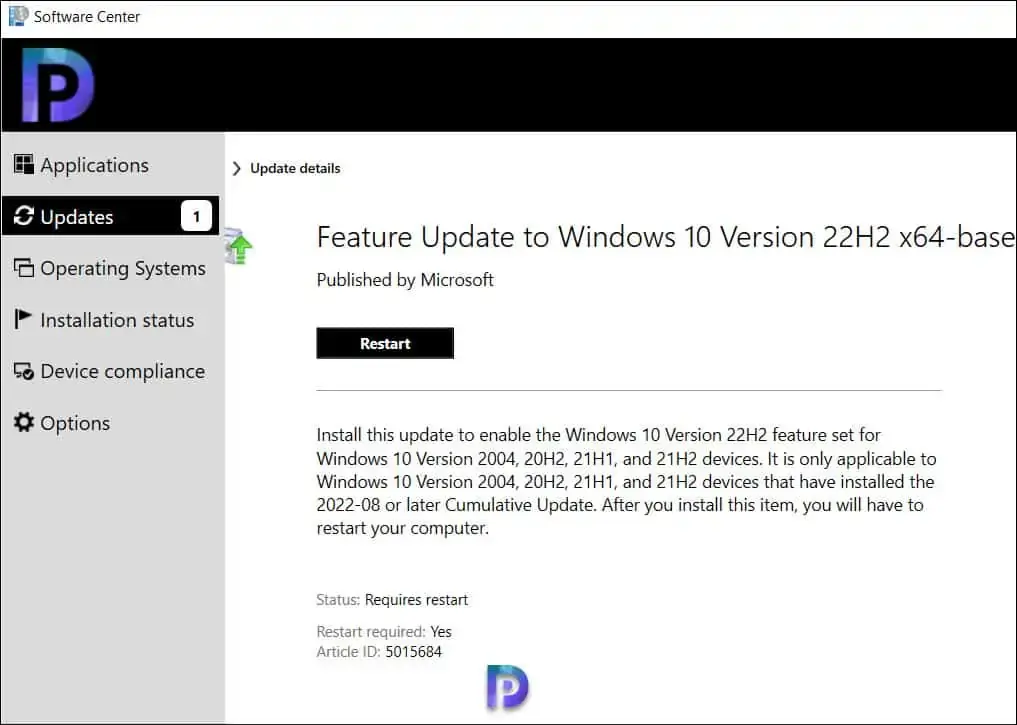

The Feature Update to Windows 10 Version 22H2 x64-based systems 2022-10 via Enablement Package is installed in less than 2 minutes. Click on Restart.

Restart the Computer to Complete Windows 10 22H2 Upgrade

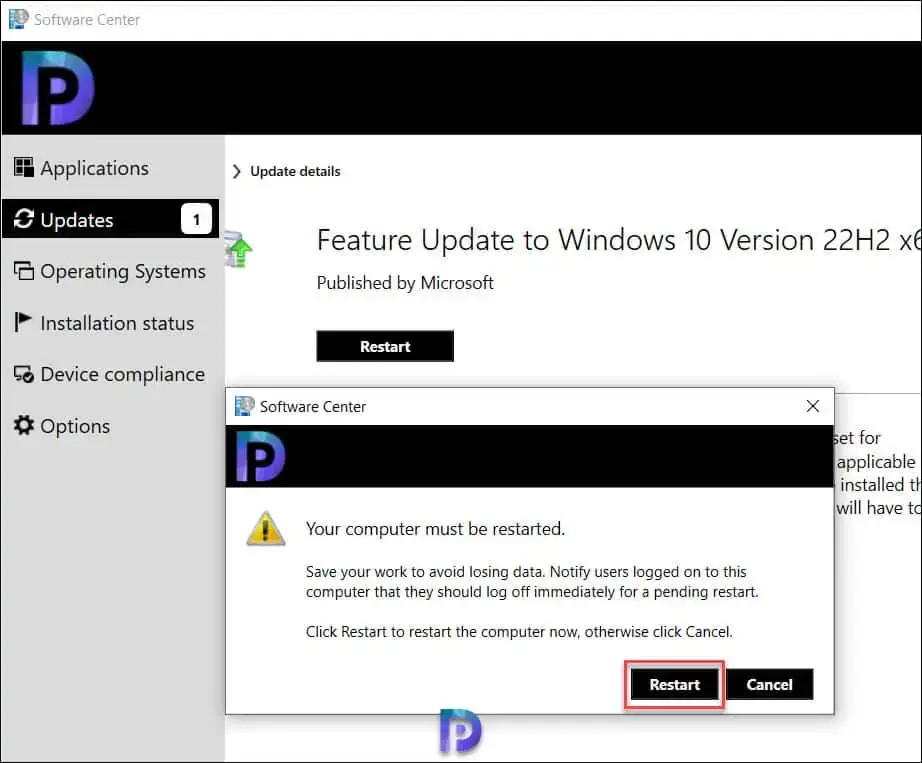

On the confirmation box, click Restart.

Restart the Computer to Complete Windows 10 22H2 Upgrade

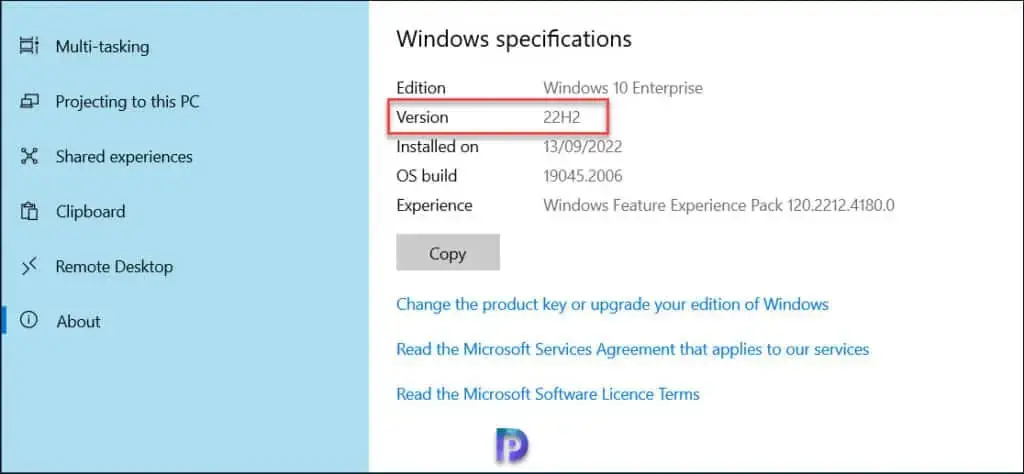

The Windows 10 22H2 upgrade is complete. Log in to the Windows 10 computers and click Start > About My PC. Under Windows Specifications, you will find the build number and version of Windows 10. In the below screenshot, we see the Windows version is “22H2” and the OS build number is 19045.2006.

Verify the Windows 10 22H2 Version and Build Number

After you have upgraded multiple Windows 10 computers to version 22H2, you can create a device collection in SCCM. Refer to this article to learn how to create Windows 10 22H2 device collection using WQL Query. If you want to get to Windows 11, you can upgrade to Windows 11 using different methods.
